Why Aluminum Die Casting Parts Often Need CNC Machining

Aluminum die casting is an efficient way to produce complex metal components, especially when repeatable shapes and larger production volumes are required. However, the casting process does not always provide every feature or tolerance needed for a finished component. This is where CNC machining can become an important secondary process.

Rather than replacing die casting, CNC machining often works together with it to complete critical features and achieve the required final dimensions.

Aluminum die casting can form complex external geometries, ribs, bosses, mounting structures and other features directly in the mold. This can reduce material waste and make repeated production more efficient.

However, some functional areas may require tighter dimensional control than the casting process can economically provide. Precision holes, threaded features, sealing surfaces and mounting interfaces are common examples.

These areas may be left with machining allowance during casting and finished later by CNC machining.

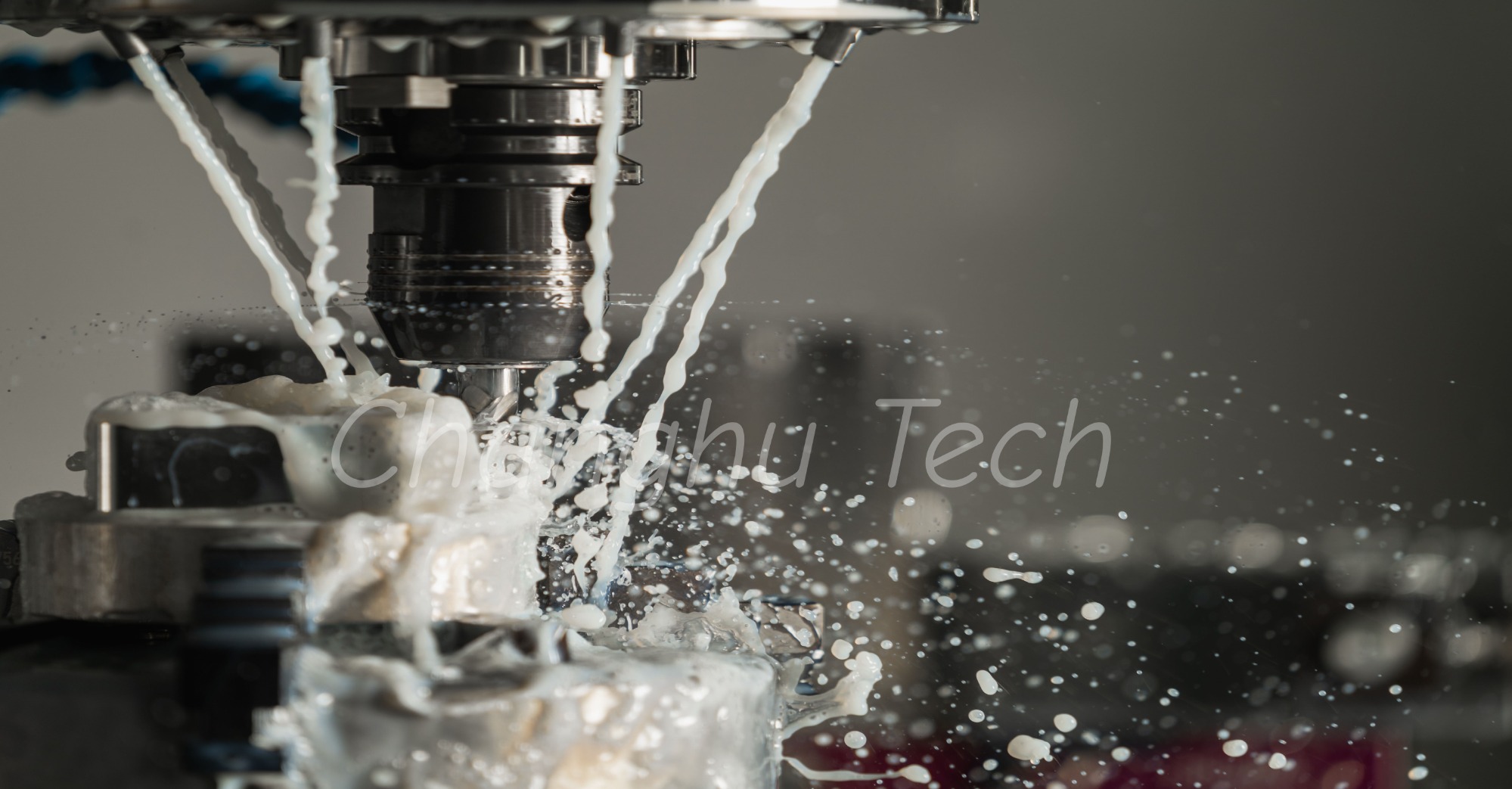

CNC machining removes a controlled amount of material from selected areas of the casting. This allows manufacturers to improve dimensional accuracy and create precise functional surfaces without machining the entire component from a solid block.

For example, a cast housing may already have its main shape and internal structure formed during die casting. CNC machining can then be used for mounting holes, bearing seats, sealing faces or other areas where tighter tolerances are required.

This combination can provide a practical balance between production efficiency and precision.

One important principle is that CNC machining does not have to be applied to the whole part.

If a surface can meet its requirements directly after casting, additional machining may be unnecessary.

Selective machining can reduce processing time while maintaining the required accuracy on critical features.

This is why the casting design, machining allowance and final tolerance should be considered together before production begins.

The relationship between die casting and CNC machining should ideally be considered during the design stage.

Features such as wall thickness, draft angles, parting lines, machining allowances and tool access can all affect the final manufacturing process. A design that is suitable for casting but difficult to machine may require unnecessary secondary operations.

By considering both processes as one manufacturing route, it becomes easier to identify which features should be cast and which should be machined.

For many custom aluminum components, die casting and CNC machining are complementary rather than competing processes.

Die casting can efficiently create the main geometry, while CNC machining can refine selected functional areas that require greater dimensional control.

The most suitable process depends on the part geometry, production volume, tolerance requirements and intended application. Evaluating the complete manufacturing route can help achieve a better balance between efficiency, precision and overall part performance.
