Dimensional tolerances define the acceptable variation between a specified dimension and the actual measurement of a part. In aluminum die casting, tolerances help determine whether a component can meet its functional, assembly, and quality requirements.
Not every dimension needs the same level of precision. A mounting hole, sealing surface, or mating interface may require tighter tolerances than a non-functional outer surface. Identifying these differences helps manufacturers focus on the dimensions that matter most.
Several factors influence dimensional accuracy during production.
Part geometry: Complex shapes, thin sections, and uneven wall thickness can affect cooling and shrinkage, potentially causing dimensional variation or distortion.
Material and solidification: Aluminum alloys contract as they cool. Differences in part geometry and cooling conditions can influence the final dimensions.
Tooling and production conditions: Mold condition, temperature control, and process stability all contribute to dimensional consistency across production batches.
Part size and measurement location: Larger parts and dimensions measured across different sections may present different tolerance requirements. The achievable tolerance should therefore be evaluated against the actual component and drawing.
A practical approach begins with the part's intended function. Buyers and engineers should identify critical dimensions, assembly interfaces, and surfaces that affect sealing or positioning. These requirements should be clearly indicated on the engineering drawing.

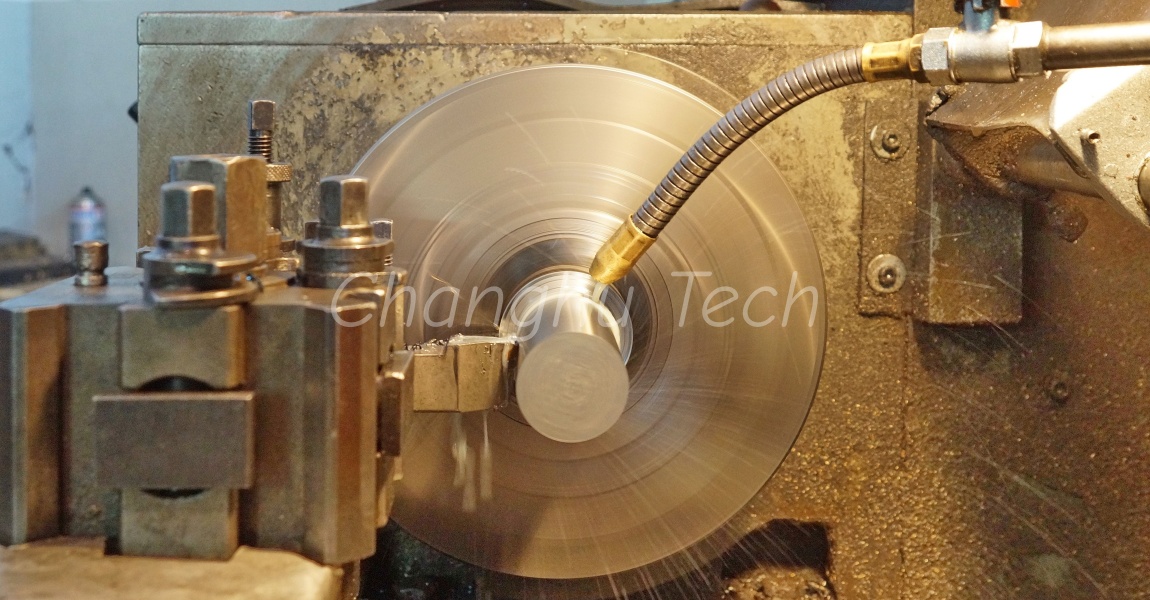

It is also important to distinguish between as-cast dimensions and dimensions that require secondary machining. Some features may be achievable directly through casting, while others may need additional processing to meet the specified requirements. Machining allowances and datum references should be considered during project evaluation.
Applying unnecessarily tight tolerances to every dimension can increase manufacturing complexity, inspection requirements, and overall cost without improving product performance.
Clear 2D drawings, supported by 3D models, help manufacturers assess dimensional requirements before quotation. Where necessary, inspection methods and acceptance criteria should also be agreed upon in advance.
For custom aluminum die casting projects, tolerance requirements should balance functional performance, manufacturing capability, and cost. A drawing-based review helps establish realistic expectations and supports more consistent production outcomes.
