Surface finishing is an important part of producing custom aluminum die castings. After casting, a component may require additional processing to remove unwanted material, improve surface consistency, prepare it for coating or meet the requirements of its final application.
The right finishing method depends on the casting condition, functional requirements, appearance and subsequent manufacturing processes.
Aluminum die casting can produce complex shapes efficiently, but the finished casting may have gates, flash, parting-line marks or minor surface irregularities.
Post-processing can help remove these features and prepare the part for further operations. For some components, basic edge treatment may be sufficient. Others may require additional surface preparation before painting, coating or assembly.
Therefore, surface finishing should be considered as part of the overall manufacturing process rather than simply an aesthetic step.
Different applications call for different finishing approaches.

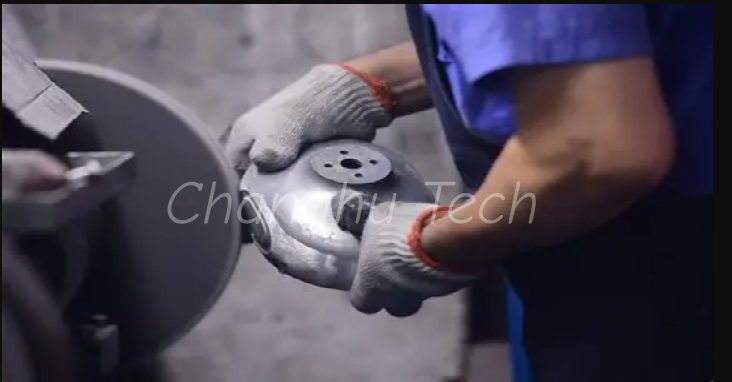

Deburring and edge treatment
Deburring removes unwanted material and sharp edges left after casting. It is commonly used when the casting needs cleaner edges before machining or assembly.
Shot blasting
Shot blasting can remove surface residues and help create a more consistent surface condition. It is often used as a preparation step for aluminum castings before subsequent processing.
CNC machining
Although CNC machining is primarily used for dimensional accuracy rather than surface finishing, it can produce precise functional surfaces, holes and mounting areas that cannot be achieved through casting alone.
Painting and coating
When appearance, corrosion resistance or additional surface protection is required, painting or other coating processes may be considered. The casting surface normally needs appropriate preparation before these treatments.
The choice depends on what the finished component needs to achieve rather than simply selecting the most extensive treatment available.
Surface treatment should ideally be considered before production begins.
Features such as parting lines, gates, narrow sections, deep cavities and difficult-to-access surfaces can affect how easily a casting can be cleaned or finished.
If certain surfaces will later be machined or coated, their requirements should also be considered during casting design. This helps avoid unnecessary secondary processing and makes the complete manufacturing route more predictable.
There is no universal surface finishing solution for custom aluminum die castings.
A component used inside industrial equipment may have very different requirements from a visible housing or an outdoor component. Functional surfaces may prioritize dimensional accuracy, while exposed surfaces may place greater emphasis on appearance and protection.
Production volume is another consideration. A finishing process that works well for a small batch may not be the most efficient choice for high-volume production.
For this reason, the final application, casting geometry, required appearance, dimensional requirements and subsequent processes should all be evaluated together.
A quality aluminum die casting does not end when the part leaves the mold. Casting, trimming, deburring, surface preparation, CNC machining and final finishing may all form part of the complete production route.
Selecting the appropriate surface finishing process at the beginning can help reduce unnecessary operations and achieve a more consistent result.
For custom aluminum die castings, the best finishing option is ultimately the one that matches the part's function, appearance and production requirements.
