Choosing a manufacturing process for a custom aluminum component is not simply a matter of selecting the lowest production cost. Part geometry, production volume, dimensional requirements, material properties, surface finish, and secondary machining all influence the final decision. For many industrial components, aluminum die casting can offer a practical balance between production efficiency, repeatability, weight reduction, and design flexibility.
But when is aluminum die casting actually the right choice?

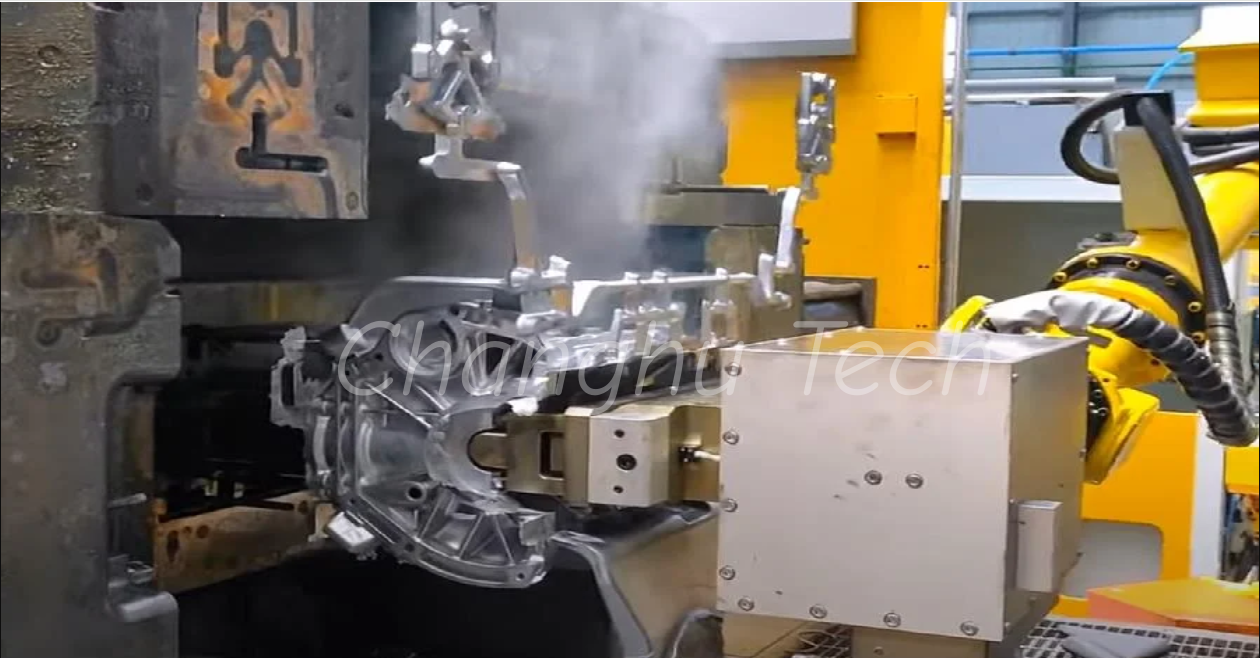

Aluminum die casting uses a reusable metal mold to form molten aluminum into a defined component. Unlike machining a part entirely from a solid block, the casting process creates much of the required geometry during the initial forming stage.
This makes aluminum die casting particularly useful for components that need complex shapes, integrated features, or relatively high production volumes.
Aluminum alloys are also widely used because they combine low density with useful mechanical properties and good thermal conductivity. These characteristics make cast aluminum suitable for applications such as automotive components, motor housings, electronic enclosures, brackets, pump housings, telecom components, and other industrial parts.
The process becomes especially attractive when a component will be produced repeatedly and the tooling cost can be distributed across a larger production quantity.
Production volume is one of the first factors to evaluate.
For a small number of prototypes or one-off components, CNC machining may be more practical because it avoids dedicated die-casting tooling. However, as production quantities increase, the economics can change.
Once the mold has been developed and validated, the same tooling can be used for repeated production. This helps maintain consistent part geometry and can reduce the amount of material that would otherwise need to be removed during machining.
For this reason, aluminum die casting is often considered for medium- to high-volume production rather than very small batches.
The exact break-even point depends on part size, geometry, alloy, tooling complexity, machining requirements, and annual demand. There is no universal production quantity that automatically makes die casting the best option.
Geometry is another important consideration.
A custom component may contain ribs, bosses, mounting features, curved surfaces, recessed areas, or other shapes that would require significant machining if produced entirely from billet or plate.
Die casting can form many of these features directly into the component. This can reduce subsequent machining and make it possible to consolidate several features into a single part.
However, not every geometry is automatically suitable for die casting. Wall thickness, draft angles, transitions, cores, parting lines, and other design details need to be considered during tooling development.
A part designed for CNC machining is not necessarily optimized for casting. Reviewing the design from a manufacturing perspective before tooling begins can help avoid unnecessary modifications later.
Weight reduction is one reason aluminum remains popular across many industries.
Compared with many other engineering metals, aluminum provides a relatively low-density solution while maintaining useful strength and rigidity for numerous applications. For transportation, automotive, motor, and equipment components, reducing unnecessary weight can be an important design objective.
Die casting can also produce near-net-shape components, meaning that much of the final geometry is created during casting rather than by removing large amounts of material.
This does not mean that every die-cast component requires no machining. Critical holes, threads, sealing surfaces, mounting interfaces, and tight-tolerance areas may still require CNC machining after casting.
Instead, casting and machining can work together: die casting forms the general structure, while CNC machining produces the precision features.
For many custom aluminum components, the choice is not simply between die casting and CNC machining.
A more practical solution can be:
Die casting + CNC machining.
The casting process produces the main body of the component, while CNC machining is used for areas where tighter tolerances or specific surface conditions are required.
For example, an aluminum housing may be cast with mounting bosses, ribs, and external contours. CNC machining can then be used to finish holes, threads, sealing surfaces, or precision mounting locations.
This combination can provide a useful balance between production efficiency and dimensional accuracy.
When evaluating a project, it is therefore important to consider the complete manufacturing route rather than comparing the unit price of casting and machining separately.
Tooling is a major part of any aluminum die casting project.
A die is normally designed around the final component geometry, required production quantity, alloy, casting method, ejection requirements, and secondary operations.
Changes made after tooling is completed can be more expensive and time-consuming than changes identified during the initial design review.
For this reason, a complete 3D model is particularly useful when evaluating a custom die-cast component. It allows the manufacturer to review the geometry, identify potential manufacturing issues, consider parting lines and cores, and assess areas that may require subsequent machining.
A good manufacturing review should take place before the mold is finalized.
The casting process determines the basic surface condition of a component, but the final appearance or functional requirements may require additional treatment.
Depending on the application, aluminum castings may undergo processes such as shot blasting, deburring, edge grinding, CNC machining, coating, or other surface treatments.
The correct post-processing route depends on the component's purpose.
For example, a structural bracket may prioritize dimensional consistency and edge treatment, while an electronic housing may require machined interfaces and a specific surface finish.
Therefore, surface treatment should be considered as part of the overall manufacturing process rather than as an isolated final step.
Aluminum die casting has many advantages, but it is not suitable for every project.
Very low production volumes may not justify dedicated tooling. Extremely simple components may be more economical to produce through other forming or machining processes. Some designs may also require significant changes before they can be efficiently cast.
Material requirements are another consideration. The selected alloy must meet the mechanical, thermal, corrosion, and application-specific requirements of the finished component.
The best manufacturing process should therefore be determined by the complete project requirements rather than by the material name alone.
There is no single manufacturing process that is ideal for every aluminum component.
For custom parts, the right choice depends on the relationship between geometry, quantity, material, tolerances, tooling, machining, surface treatment, and final application.
Aluminum die casting becomes particularly attractive when a component has a repeatable production demand, complex geometry, lightweight requirements, and features that can be formed efficiently through casting.
When precision is required in selected areas, CNC machining can be integrated into the production route.
For this reason, evaluating a custom aluminum part should begin with the actual product drawing or 3D model and the intended production requirements. A manufacturing process can then be selected around the part, rather than forcing the part into a predetermined process.
For manufacturers and purchasing teams, this approach can help create a more balanced production plan—one that considers not only the initial piece price, but also tooling, machining, consistency, production volume, and long-term manufacturing efficiency.
