Differential Pressure Casting for Precision Aluminum Prototyping

Developing a new aluminum component often requires more than a 3D model or machined prototype. Engineers need physical cast parts to evaluate dimensions, assembly, internal structures, and functional performance. This is where Differential Pressure Casting can offer a valuable solution, particularly during the early stages of product development.

Differential Pressure Casting is an aluminum casting process that uses a controlled pressure difference to move molten metal into the mold cavity. By controlling the pressure and filling conditions, the process allows molten aluminum to enter the cavity more steadily compared with conventional gravity filling.

The controlled filling behavior is especially important for parts with complex geometries, thin sections, or demanding dimensional requirements. Proper control of pressure, temperature, filling speed, and solidification conditions helps create more stable casting results.

One of the notable advantages of Differential Pressure Casting is its potential to produce castings with smaller and fewer internal gas pores. A more controlled filling process can reduce air entrapment and minimize turbulence during metal flow.

Lower porosity is valuable when the finished part needs CNC machining, sealing surfaces, structural strength, or reliable functional performance. For engineering teams, better internal quality also makes prototype samples more representative of the final aluminum component.

Precision is another reason this process can be useful during product development. Stable metal filling and controlled solidification can help improve dimensional consistency, allowing engineers to obtain more reliable data from prototype parts.

Instead of evaluating a design only through plastic models or machined blocks, teams can test an actual aluminum casting with the intended material characteristics and structural features. This can reveal potential issues with wall thickness, assembly clearance, machining allowances, or functional performance at an earlier stage.

For new products, investing in a production die too early can increase development costs and create risks if the design still needs modification. Differential Pressure Casting can provide aluminum samples before committing to full production tooling, making it suitable for early-stage engineering development.

The purpose is not to eliminate tooling entirely, but to provide a practical way to obtain functional aluminum casting samples while the product design is still being evaluated. Once the design is validated, the project can then move toward the appropriate production process and tooling solution.

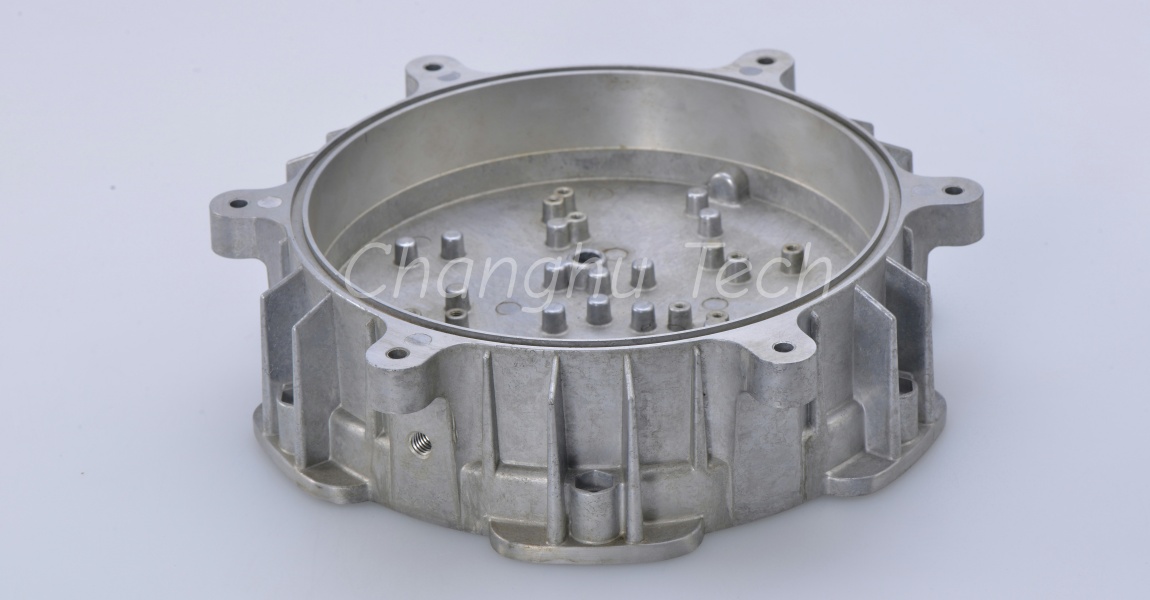

Differential Pressure Casting Parts can be considered for automotive components, motor housings, brackets, electronic enclosures, thermal management components, and other precision aluminum parts.

With its combination of low porosity, controlled filling, dimensional consistency, and flexible prototype development, differential pressure casting can serve as an effective bridge between initial product design and future mass production.
